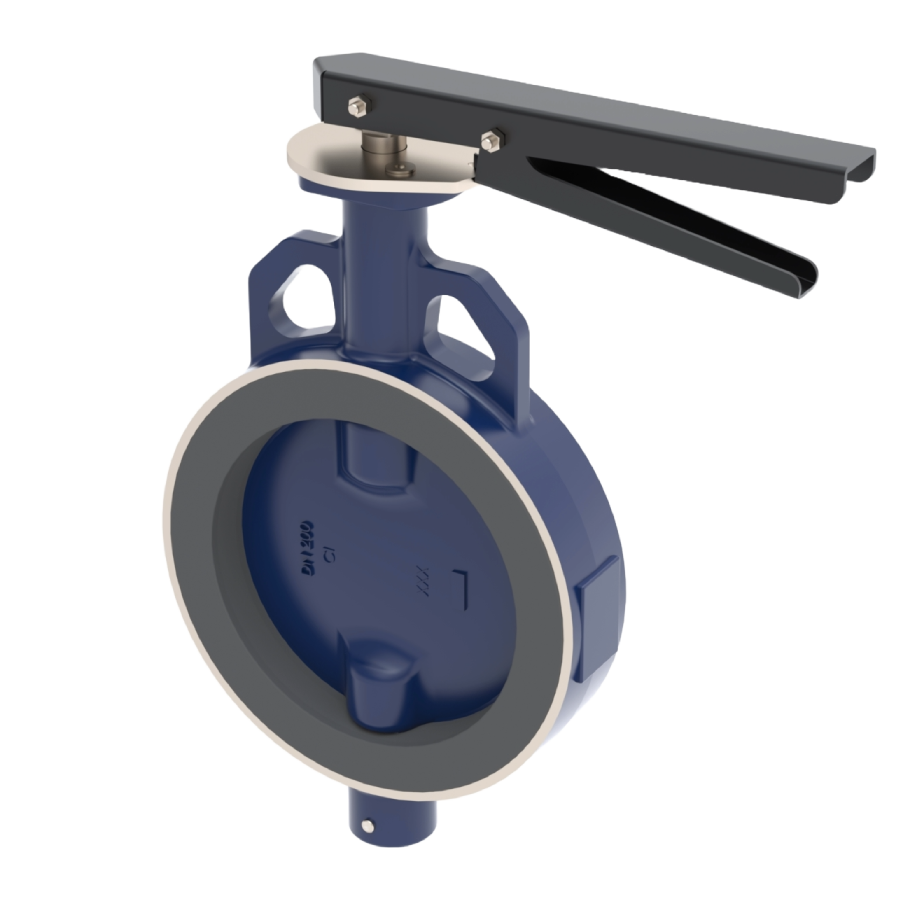

Butterfly Valves, Series 56 Concentric
Features
- Concentric valve designed for diverse applications.
- Light weight design results in reduced cost & simplified installation.
- Extended rubber seal eliminates gasket during installation.
- Bubble tight shutoff at full pressure rating.
Specification
- Body material:Cast Iron / Carbon Steel / Stainless steel
- Disc Material:Cast Iron (with Nylon / PTFE coating) / Carbon Steel / Stainless steel / Al. Bronze / Duplex
- WedgeCarbon steel / Stainless steel / Other alloys
- Size: DN 50 mm to DN 1200 mm
- End Connection:Wafer , Lugged
- Actuators : Hand Lever / Gear / Pneumatic / Electric.
Butterfly Valves, Series 58 Double Offset
Features
- Double eccentric valve designed for unique applications like Sea and fire water services, Chemical and General Industry.
- Long life durability due to double offset operating system
- Accessible packing adjustment without operator removal.
- Fire safe design.
- Fast and simple seat replacement.
- Disc stopper integrated with body gives perfect sealing.
Specification
- Body material: Carbon Steel / Stainless steel / Al.Bronze/ Duplex
- Disc Material Carbon Steel / Stainless steel / Al.Bronze/ Duplex
- Size: DN 80 to DN1200 (Higher Sizes on request)
- End Connection : Wafer , Lugged , Double Flanged
- Actuators : Hand Lever / Gear / Pneumatic / Electric
