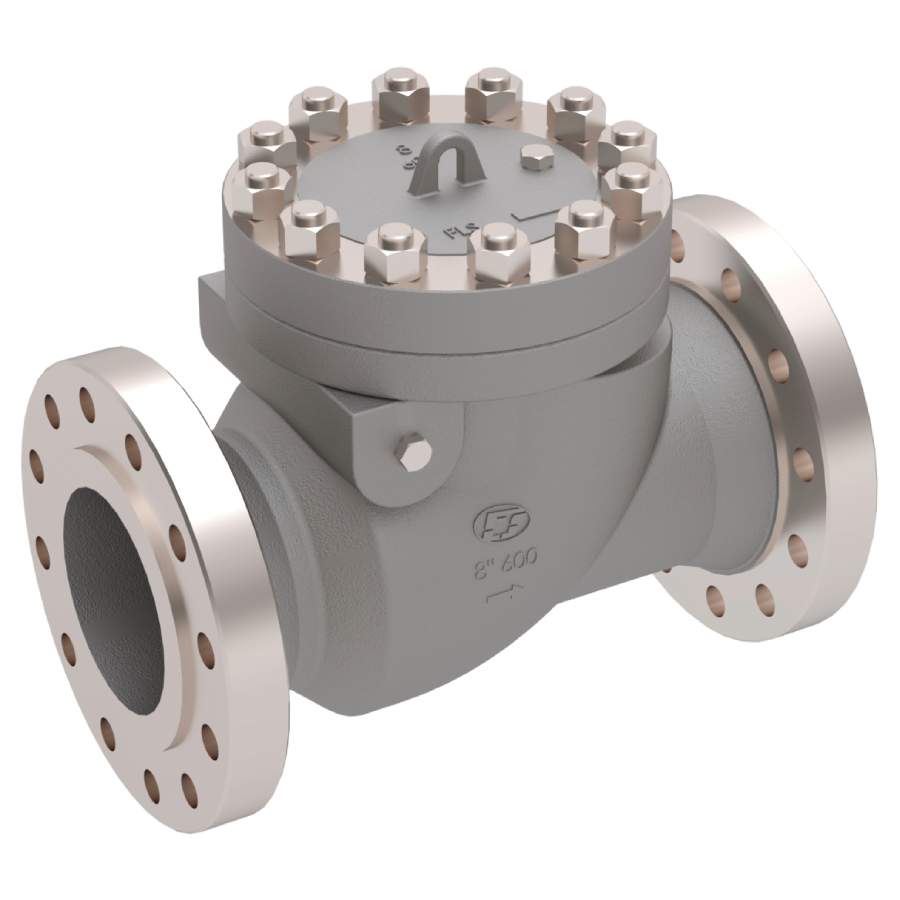

Swing Check Valves, Series 45 ASME B16.34

Features

  • Swing Check Valve with bolted cover.
  • The disc and seat is precision machined for tight shut off in reverse flow direction.

Specification

  • Body material:Carbon Steel / Stainless steel / Other alloys
  • Seat: METAL / VITON / EPDM / HNBR
  • Size: 50mm to 600mm
  • End Connection:Flanged to ANSI B16.5
  • Class: 150, 300, 600

Design Standards

  • Face to face: : ASME B16.10
  • Design: ASME B16.34
  • Testing : API 598
