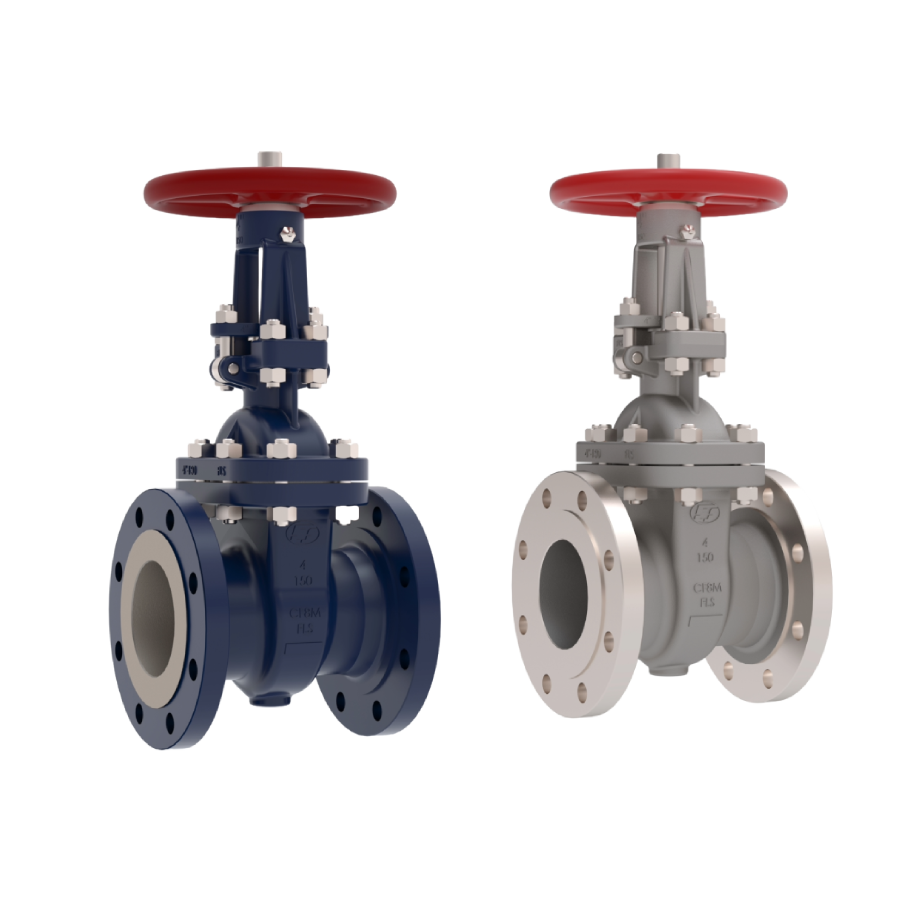

Wedge Gate Valves, Series 20API 603 & ASME B 16.34
Features
- Precision machined flexible wedge
- Fully guided gate ensures alignment of Wedge
- Outside screw and yoke,
- Rising stem with two piece yoke and bonnet assembly.
Specification
- Body material:Carbon steel / Stainless steel / Other alloys
- WedgeCarbon steel / Stainless steel / Other alloys
- Size: 50mm to 600mm (for class 150); 50mm to 600mm (for class 300)
- Class: 150, 300
- End Connection:Flanged to ANSI B16.5
Design Standards
- Face to face: : Flanged to ANSI B16.5
- Design:ASME B16.34 & API 603
- Testing : API 598
