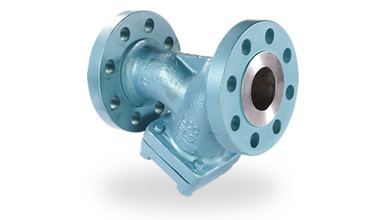

| Strainer 'Y' Type | |
| Size | 1/2" - 10" |
| Pressure Class | ANSI 150 - 2500 |
| Design | ASME B16.34 |
| Face to Face | ASME B16.10 |
| End connection | ASME B 16.5 / ASME B 16.11 (Threaded / Flanged ends) |
| Test | ASME B16.34 |
| Structure | "Y" type |
| Material - Castings | WCC, LCC,CF8, CF8M |
| Material - Forgings | A105, A182-Grade F316, A350-Grade LF2 |

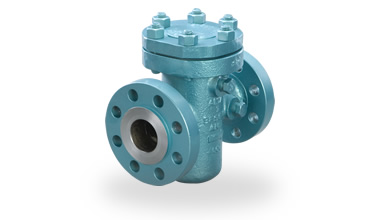

| Strainer 'B' Type | |
| Size | 2" to 8" |
| Pressure Class | ANSI 150-600 |
| Design | ASME B16.34 |
| Face to Face | ASME B16.10 |
| End connection | ASME B 16.5 |
| Test | ASME B16.34 |
| Structure | "B" type |
| Material | WCC, LCC, CF8,CF8M |
